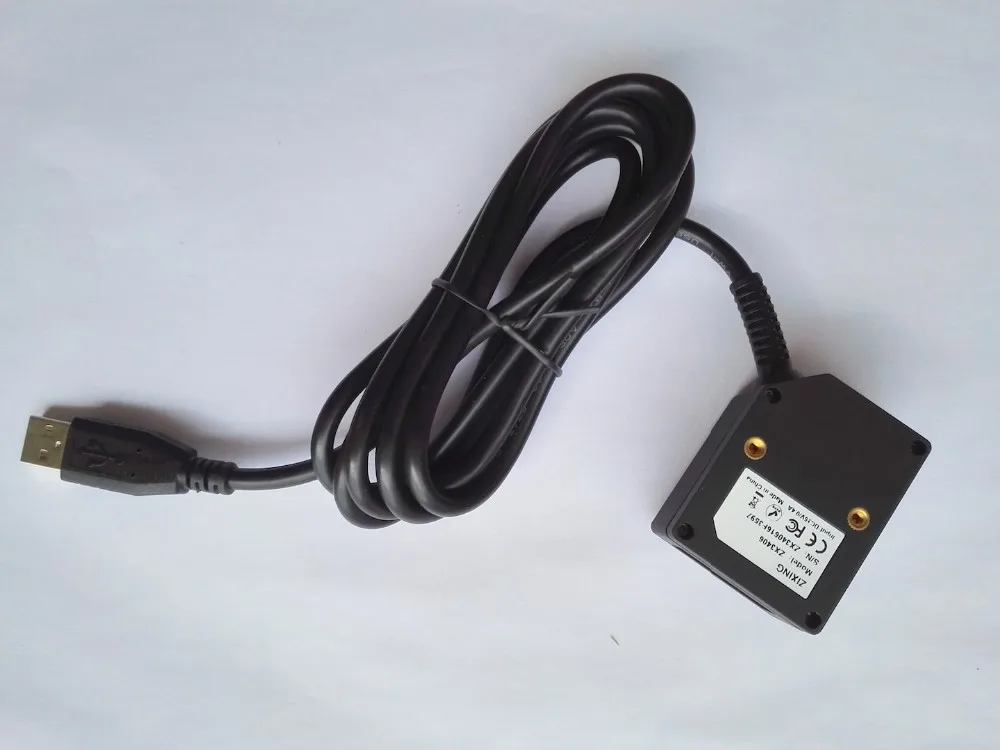

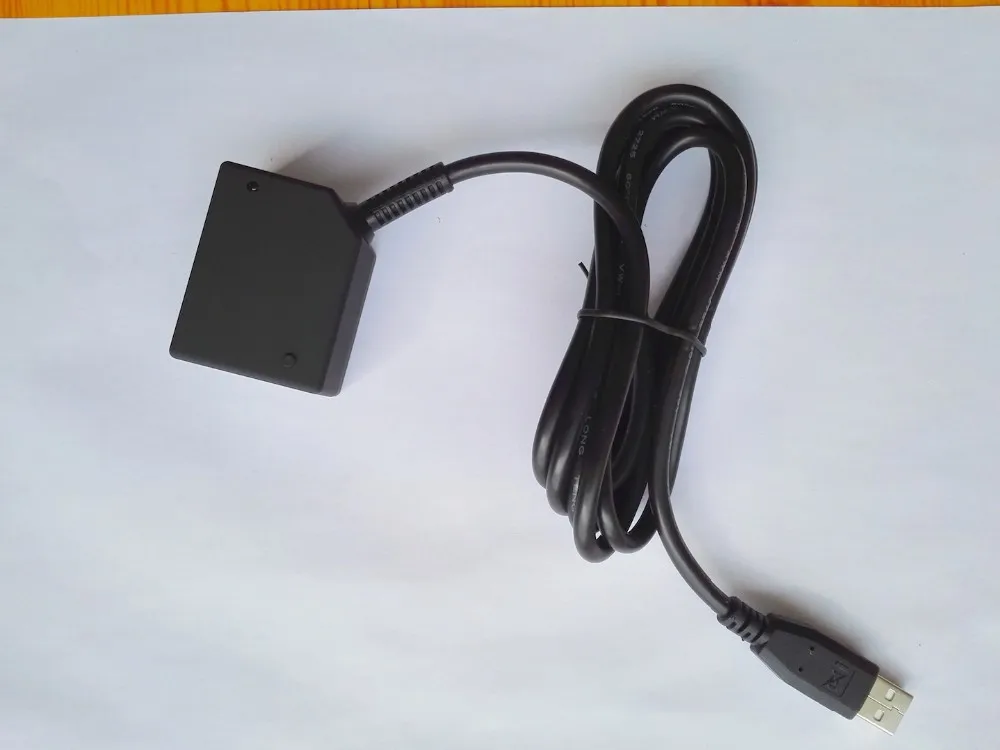

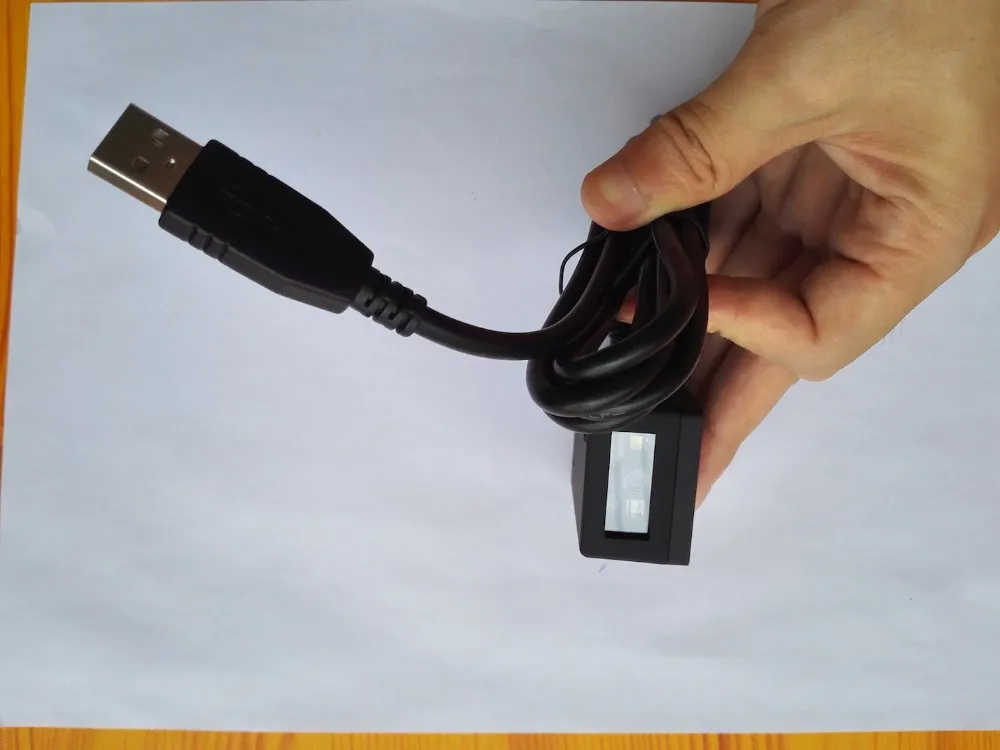

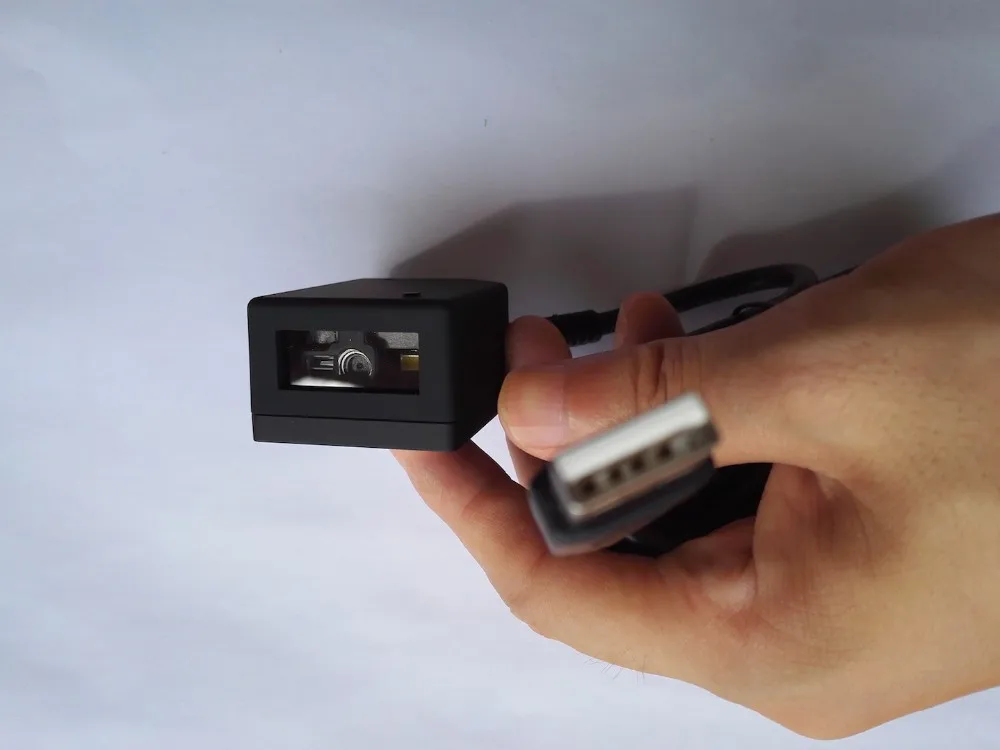

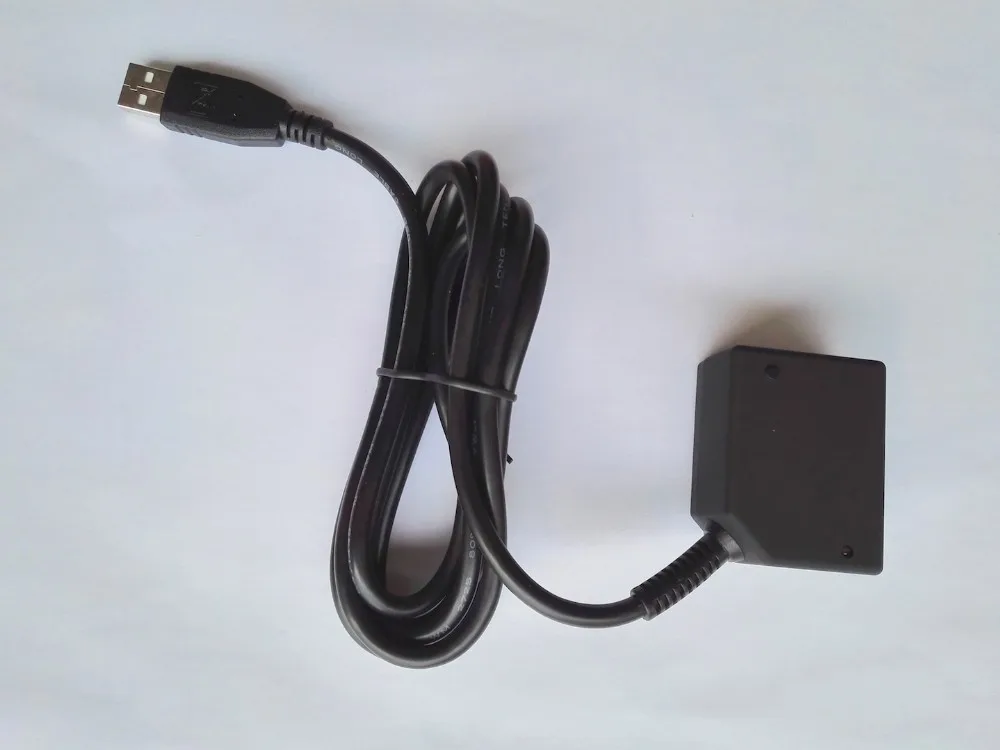

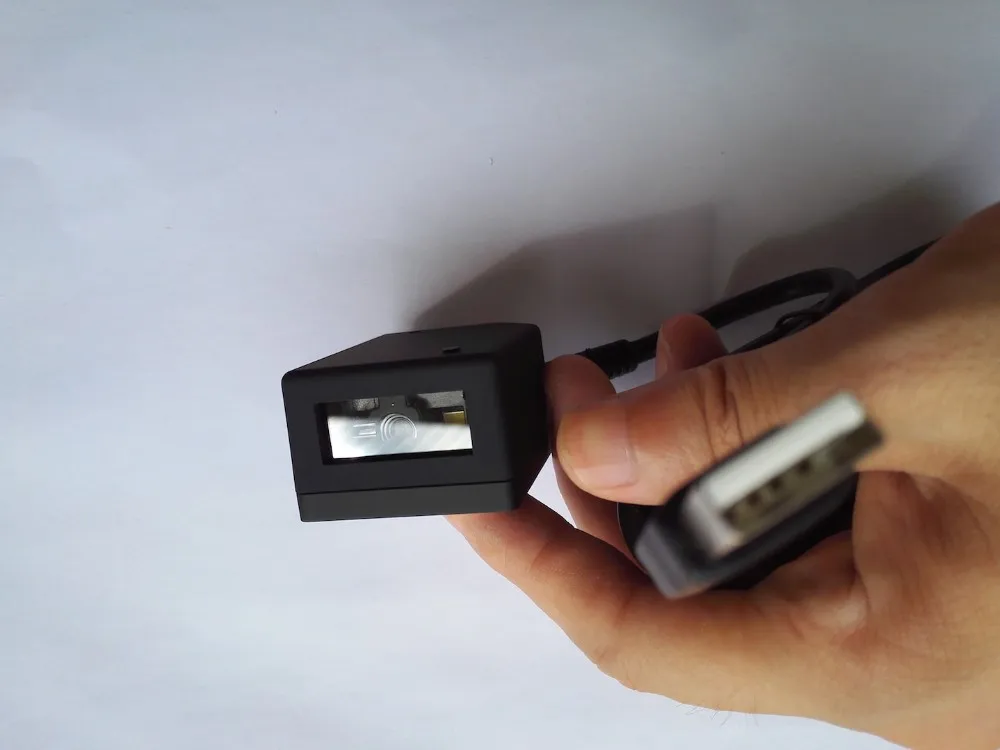

Compact Design 2D Fixed Barcode Scanner On-Screen

Compact Design 2D Fixed Barcode Scanner On-Screen

Compact Design 2D Fixed Barcode Scanner, QR code reader,2D/1D Image Fixed Mini Embedded Barcode Scanner for On-Screen Barcode

RS232 InterfaceUSB Interface
Clear

$127.50

<strong>Verified low price!</strong> You’re unlikely to find a cheaper price elsewhere
Verified low price! You’re unlikely to find a cheaper price elsewhere
Add to Wishlist
Guaranteed SAFE checkout
Estimated Delivery Date:

Estimated Delivery Date: Wednesday, August 31

Due to hight demand, please allow at least 2-4 weeks for delivery.
Insured & Trackable Worldwide Shipping

Insured & Trackable Worldwide Shipping

Your tracking number will be sent to you after 3-5 processing days.
Love It or Get a 100% Refund!

Love It or Get a 100% Refund!

We're absolutely sure that you'll love this product. If you don't, just return it for a FULL refund!

WorldWide  Free   Shipping


SW-3406M not only has a flexible and compact design, but also the same outstanding performance. From commercial POS to factory production workshop, the physical dimensions of the micro make it virtually integrated into any finite space. With the aid of comprehensive scanning function, it can be read almost any one dimensional, two dimensional bar code and even direct components (DP version).. Regardless of which type of bar code, regardless of in the bar code printed on the paper label, carved in the product or display on the screen of the mobile phone and breakthrough of digital imaging technology to achieve extraordinary scanning speed.

Features and advantages:

The precision of the unique sight
The image sensor – fast response
Two-dimensional scanning – leading platform – high speed, full range of barcode capture Fully read all the mainstream of  dimensional, two-dimensional bar code
-read the paper, mobile phone and computer display any barcode
– small size – easy integration
– easy to use – plug
Support RS232 interface and USB interface

The precision of the unique sight The image sensor - fast response Two dimensional scanning - leading platform - high speed, full range of barcode capture Fully read all the mainstream of one-dimensional, two-dimensional bar code L read the paper, mobile phone and computer display any barcode - small size - easy integration - easy to use - plug Support RS232 interface and USB interface

Applicable scope:

Medical, mobile phone coupons on the bar code or tickets (performances, air tickets, movie tickets, train tickets, etc.), pharmacies, patrol cars, retail, lottery, silver, production, etc..

Performance
Image Sensor 640*480 CMOS
Resolution 640(H)*480(V)
Interface RS232, USB/USB-COM
Symbologies
1D: EAN-8, EAN-13, Codabar, CODE 39, CODE 93, CODE 128, China Post, GS1-128, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5,Standard 2 of 5, Matrix 2 of 5,Industrial 2 of 5, MSI, RSS, ITF14, Telepen, etc.
2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec, Hanxin, etc.
Precision ≥ 5mil( Condition: PCS=0.9, testing code:Code 39)
Depth of Scan Field 30mm-600mm
Print Contrast Signal ≥ 25%PCS
Sensitivity** Pitch ±65°@ 0°Roll and 0° Skew
Roll ±360°@ 0°Pitch and 0° Skew
Skew ±60°@ 0°Roll and 0° Pitch
Illumination 0 ~ 100,000 LUX
Light Source LED(622 nm – 628 nm)
Light Intensity 265 LUX (130 mm )
Mechanical/ Electrical
Power Consumption 1.25W
Voltage DC 5 V
Current Max 250 mA
Working 170mA
Idle 65mA
Dimensions 49.2mm L * 37.5mm W * 25.0mm H
Weight 80g
Environment
Operate Temperature -5°C – +50°C
Storage Temperature -40°C – +80°C
Humidity 5% – 95% (non-condensing)
Package Dimension
188mm L * 95mm W * 40mm H
Accessories
Cable RS232 Cable Equipped with a power connector; used to connect to a host device.
USB Cable Used to connect to a host device.
Power Adapter Used to provide power.
Output: DC 5V, 2A; Input: AC100~240V, 50~60HZ.
**Test Conditions:
Code39: 3 Bytes ; Resolution = 10mil; W:N = 3:1 ; PCS = 0.8 ;
Barcode Height = 11mm; Distance = 120mm; T=23°C; Illumination= 200 LUX
Colour Depth

32 Bit

Model Number

SW-3406M

Max Paper Size

Barcode Reader

Scanning Light Source

LED

Type

Barcode Scanner

Brand Name

Sinowork

Time to market

Mar-13

Products Status

Stock

Novelty

New

Scan Breadth

Barcode

Product Type

Fixed Mini Embedded Barcode Scanner

Processor

ARM 32 Bit

Interface Type

USB/RS232 optional

Scan Element Type

Linear CCD sensor

Optical Resolution

640 pixels (H)x 480 pixels (V)

Light Source

Aiming: 617 nm LED; illumination: 6500K LED

Field of View

40° (H) x 26° (V)

QR Code (20mil)

30mm-250mm

PDF417 (6.8mil)

60mm-120mm

Scan Speed

63.5CM/S
