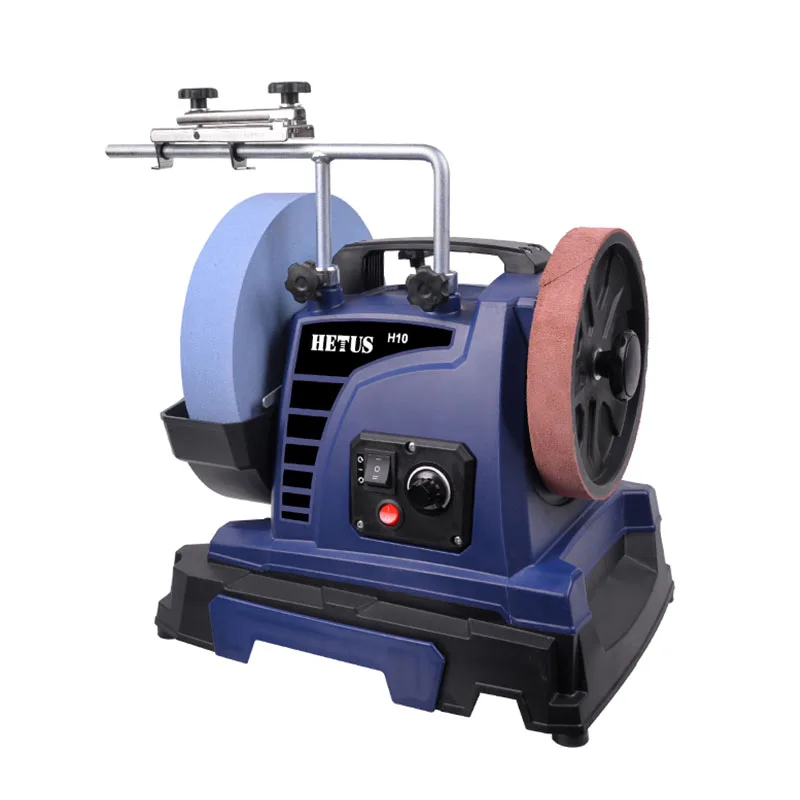

Low-speed Water Cooled Knife Sharpener

Instructions for water-cooled low-speed knife grinder

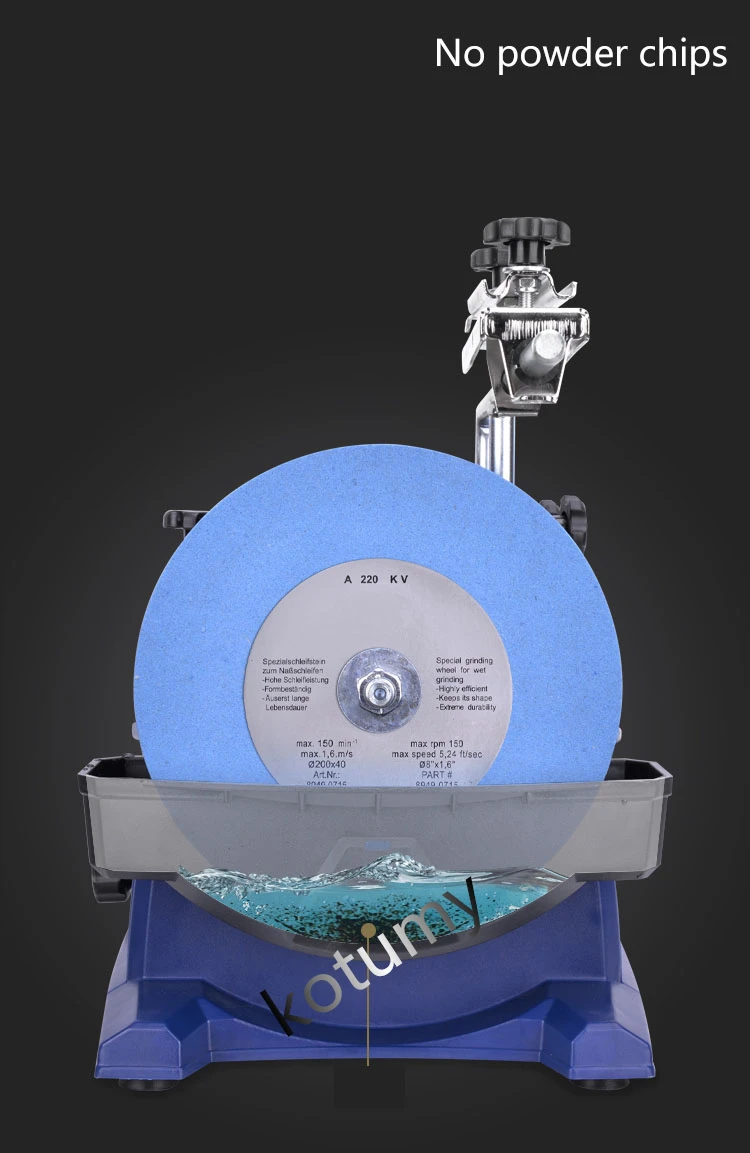

1. This water-cooled low-speed grinding machine has been tested multiple times and found that 220 mesh is more suitable for grinding
sharpness, which can balance the grinding sharpness and the smoothness of the grinding surface. During use, the handheld tool can be ground back and forth to achieve a high and sharp edge finish; If you need the cutting edge, you can choose to purchase 500 mesh precision grinding, 1000 mesh polishing, and 2000 mesh mirror surface

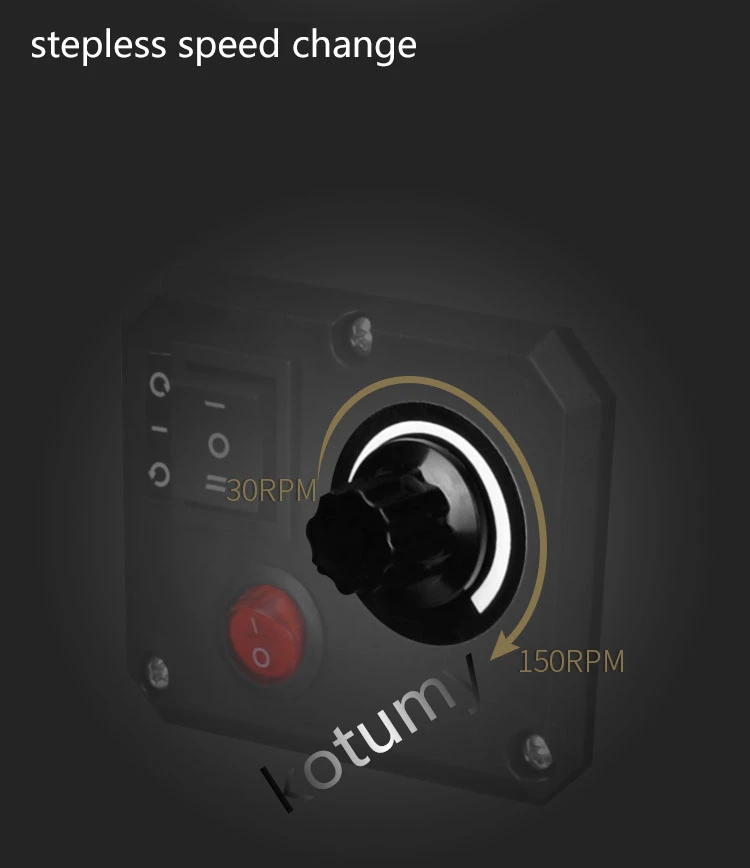

2. Regarding the rotational speed [30-150RPM], to avoid annealing damage to the sharpening knife, this model is a water-cooled
low-speed sharpening knife. If the rotational speed exceeds 50RPM, the grinding wheel will rotate and throw water out of the water tank. Therefore, controlling the rotational speed at 50RPM can meet the needs of household sharpening knives and avoid water throwing.

3. Regarding the deviation of the grinding wheel/leather wheel, this type of grinding wheel/leather wheel may have a slight deviation,
which does not affect the use of household grinding knives. Due to the bumpy logistics transportation, excessive deviation may occur. The above situation can be reduced by adjusting the locking nut. All of the above are not product quality issues. Those who mind taking photos carefully.

Kind reminder:

When using the water-cooled grinding machine, it is necessary to tighten the clutch until the grinding wheel rotates, which means
it is too tight; Please release the clutch when not in use.

Product parameters：

Model: H10
Power: 150W
Voltage: 220V
Speed: 30-150RPM
Grinding wheel mesh: 220 mesh
Spindle diameter: 12mm
Grinding wheel size: φ250*50mm
Cowhide wheel size: φ200*30mm
Size: 380*290*360mm
Net weight: 13kg

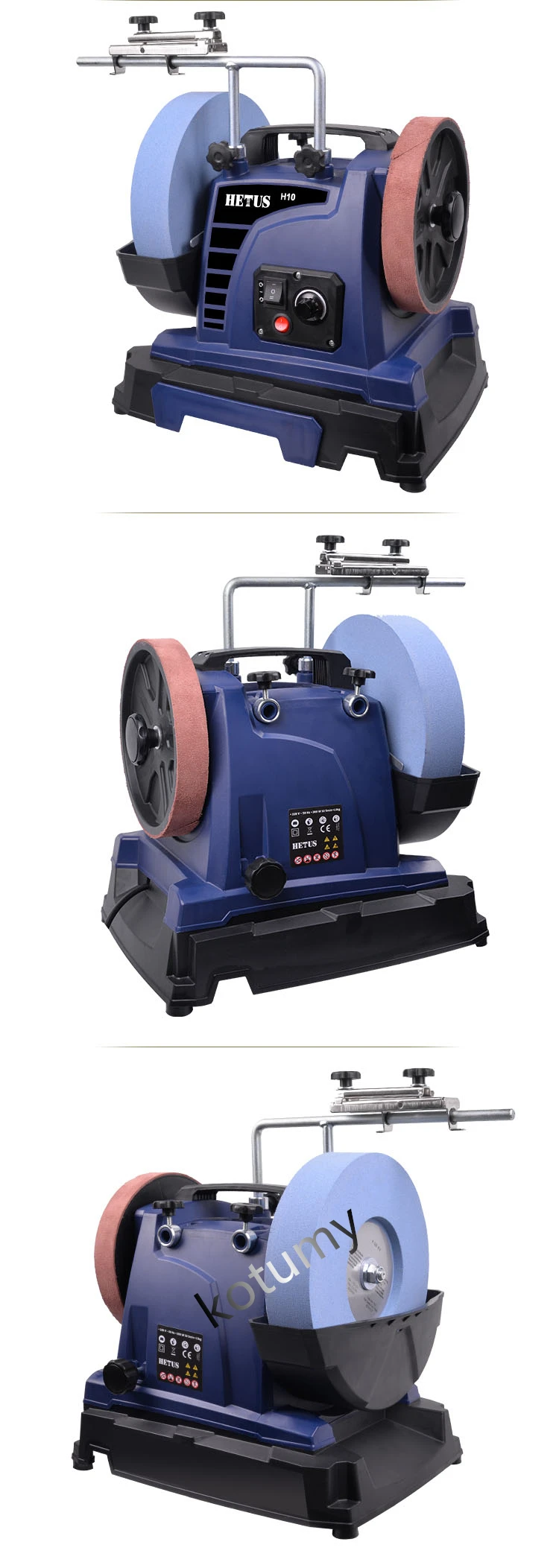

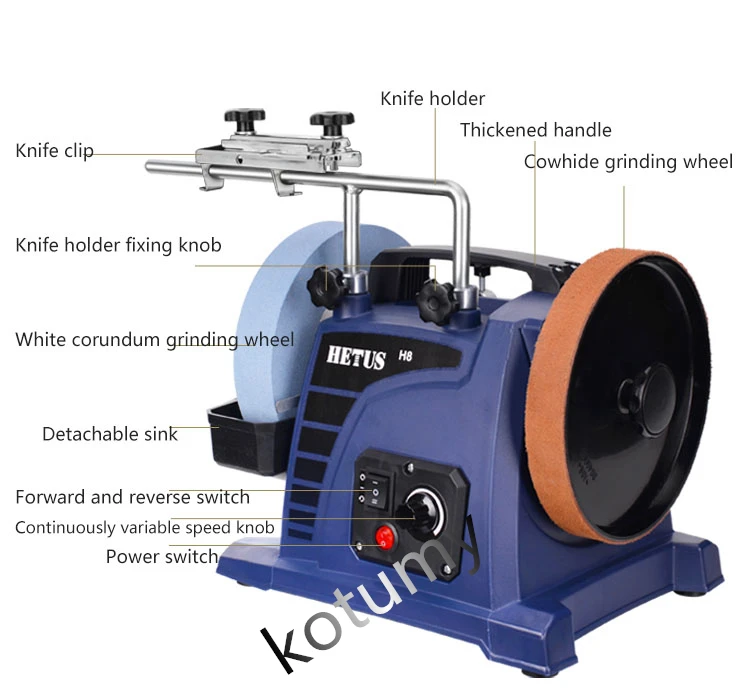

Product detail diagram：
